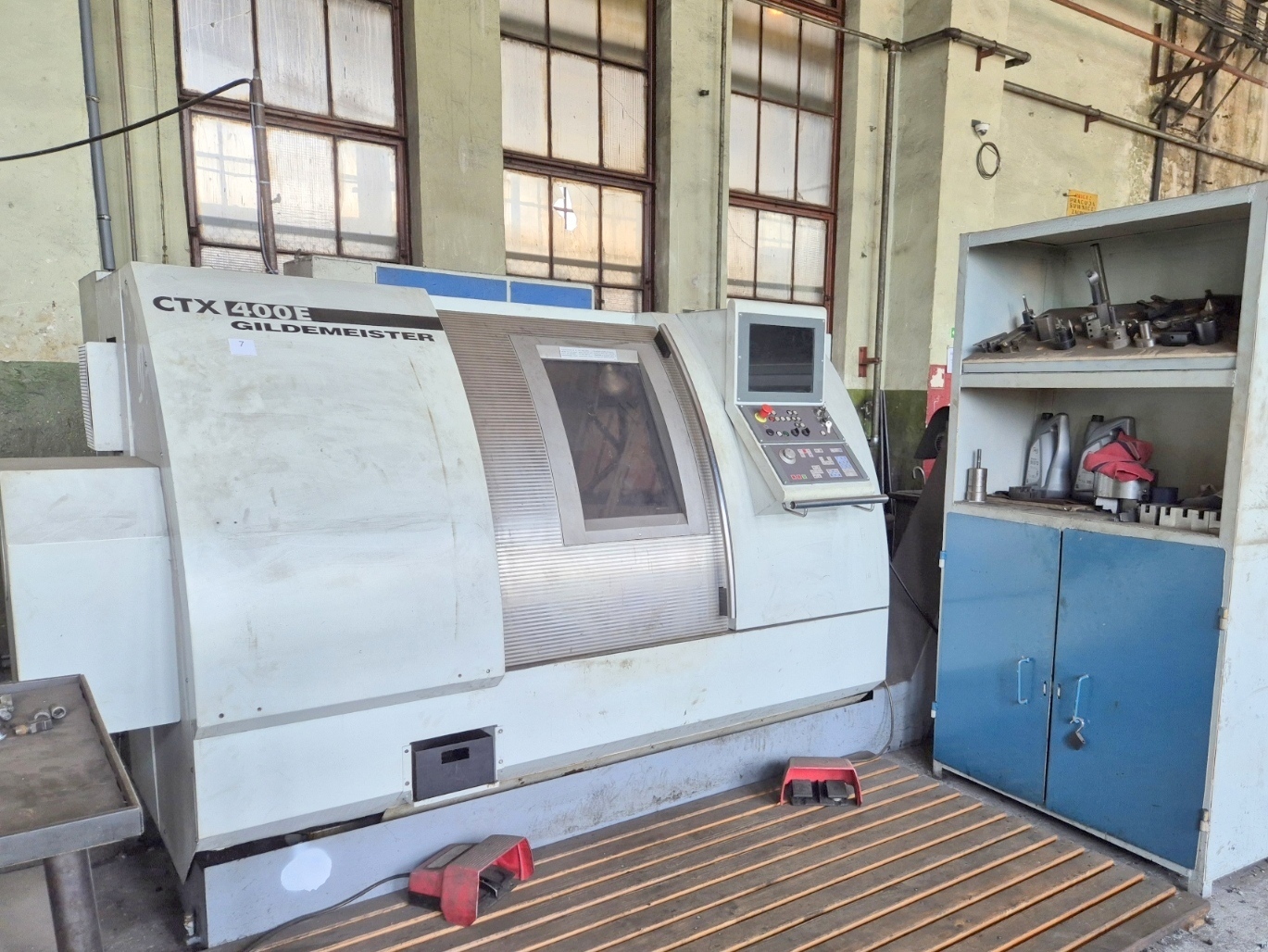

GILDEMEISTER CTX 400E CNC turning center

GILDEMEISTER CTX 400E CNC turning center was built in 2000 in Germany by GILDEMEISTER Drehmaschinen GmbH. The machine, designed for machining workpieces with a maximum diameter of 570 mm, is distinguished by its high precision and reliability. The large working area is equipped with a 12-position turret and a spindle, whose high-powered motor allows all modern cutting tools to be fully utilised. The CTX 400E CNC lathe weighs approximately 5300 kg. Technical specifications of the GILDEMEISTER CTX 400E metal lathe maximum turning diameter: 440 mm maximum turning diameter over bed: 570 mm maximum turning diameter over slide: 420 mm maximum turning length: 635 mm distance between centers: 700 mm feed in the X/Z axis: 220/635 mm maximum spindle rotational speed: 5000 rpm spindle bore diameter: 79 mm spindle drive power: 21 kW 12-position turret number of rotary tools: 40 power supply: 3x 400 V; 50 Hz dimensions (L x W x H): 4300 x 1800 x 2000 mm weight of the GILDEMEISTER machine: approx. 5300 kg
