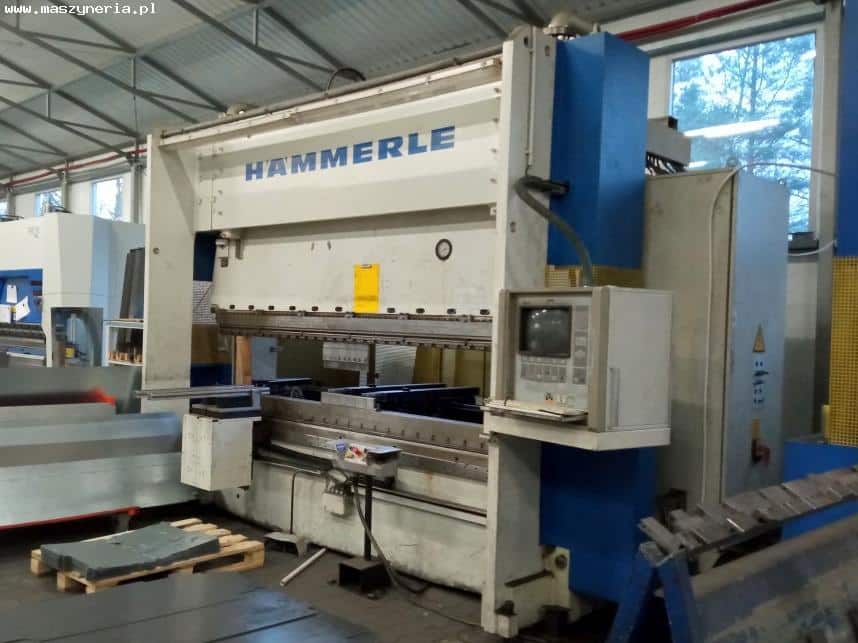

HAMMERLE BM 200-3100 press brake was produced in 1996. It is equipped with INFINITRON control, which enables programming of eleven axes. The press allows for bending elements with a length of 3,100 m with a maximum pressure of 200 tons. The machine was regularly serviced. Technical data of the HAMMERLE BM 200/3100 press – control: INFINITRON – number of NC axes: 11 – pressure: 200 tons – bending length: 3100 mm – working stroke: 400 mm – distance between the body walls: 3240 mm – maximum distance between the table and the bumper: 965 mm – voltage: 3 x 400 Volt – control voltage: 24 V – total power: 28 kW – hydraulic oil content: 550 l – deflection arrow compensation – total machine width: 4400 mm – total height of the press: 3400 mm – weight of the press HAMMERLE BM 200-3100: 16600 kg
