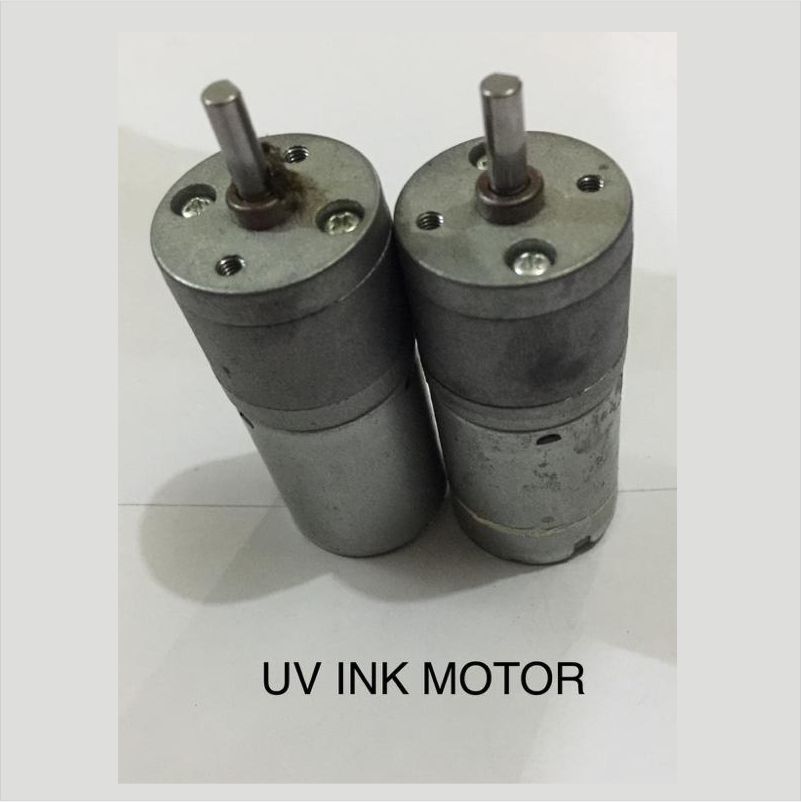

UV INK MOTOR

Overview & Purpose In a UV flatbed printer (or other UV-curable inkjet systems), the term “UV motor” generally refers to the motors that drive the motion mechanics — not the UV lamp itself, but the motors that control movement of the carriage (print head), bed, or other axes. These motors are crucial for enabling precise, stable, and high-speed motion during the printing process. The motors are responsible for: Moving the print carriage in X‑axis (left-right) Moving the substrate or table in the Y‑axis (front-back) Adjusting the Z‑axis (height) for different substrate thicknesses In advanced systems, providing synchronized, high-precision acceleration via linear or magnetic-levitation (maglev) designs Key Types of Motors Used in UV Printers Servo Motors Widely used in UV printers to drive axes. rainbowuv.com 2zlqink.com 2 Provide closed-loop control (position feedback), which ensures accurate and repeatable movement. High torque and fast response help maintain print precision, especially when the carriage accelerates or decelerates. Often coupled with lead screws or rack-and-pinion mechanisms for stable, backlash-free axis motion. Linear (Maglev) Motors Some modern high-end UV flatbeds use linear maglev motors, which eliminate belts/gears for motion. Advantages include extremely high precision, very fast speed, and minimal mechanical wear because there’s no physical contact between moving parts in the drive system. These motors are ideal for large-format or very high-speed UV printers that demand tight motion control and long-term reliability. Technical Features & Specifications (Important to Consider) When specifying or evaluating a UV printer motor, you will typically look at: Torque / Power Rating: Higher torque is better for moving heavy carriages or large print heads quickly. Feedback Mechanism: Whether the motor uses encoders for positional feedback (commonly in servo motors). Control Method: Servo motors will use servo drives; linear motors often have dedicated controllers. Speed & Acceleration: The motor must support the required acceleration rates without losing steps or overshooting. Precision / Resolution: How finely and accurately the motor can position the carriage — important for high-resolution printing. Durability: For industrial UV printers, the motor should support millions of cycles reliably. Synchronization: In some machines, dual motors may be used on one axis for synchronized movement to avoid skew or racking. Benefits of High-Quality UV Motors Print Precision & Stability: Accurate motor control ensures consistent positioning of the print head, which affects print quality. Speed: High-performance motors reduce the time per print pass by allowing faster acceleration and deceleration. Reliability: Closed-loop systems (like servo motors) reduce the risk of missed steps or positional errors. Longer Lifespan: Especially with linear / maglev motors, reduced mechanical wear extends maintenance intervals. Reduced Maintenance: Fewer mechanical parts (belts, pulleys) means lower maintenance and downtime. Risks / Challenges / Considerations Cost: High-quality servo or linear motors are more expensive than simple stepper motors. Complexity: Advanced motor systems (e.g., maglev) require more sophisticated control and safety systems. Calibration: Precision systems need proper calibration (encoder, guides) to maintain accuracy over time. Power Requirements: High-power motors may need stronger power supplies and drives. Environmental Factors: Motors need to be protected from dust, vibration, or other environmental stresses in the print environment. Examples & Use Cases The Artis 3060U UV printer uses a servo‑motor driven printing table for high-precision movement. The iMaxcan UV 1611 printer uses a linear maglev motor for very high positioning accuracy (0.1 µm) and extremely fast acceleration. In typical UV flatbeds, servo motors are used on the X, Y, and Z axes to ensure coordinated, stable motion.
