CITIZEN CINCOM M32 CNC lathe

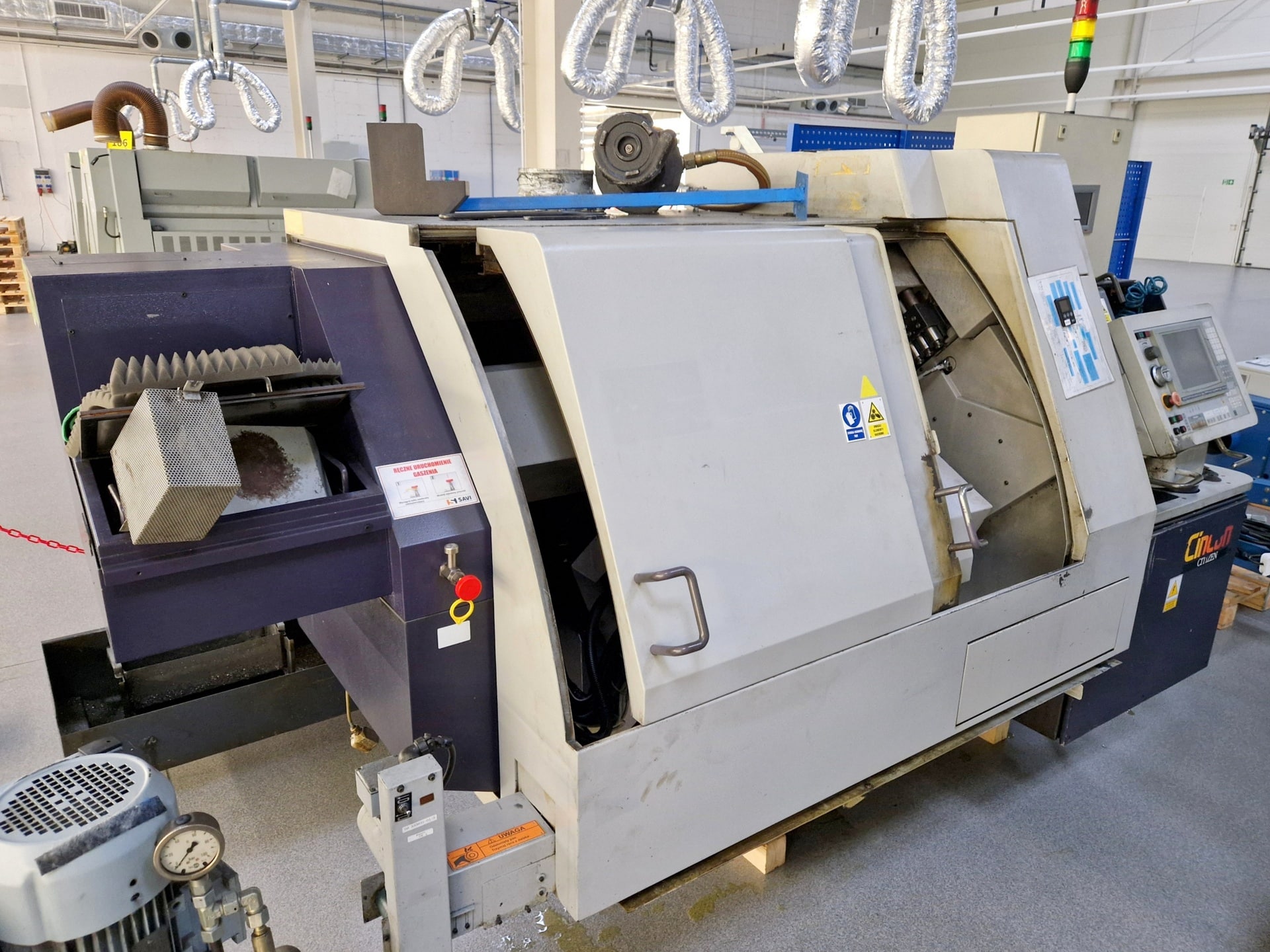

CITIZEN CINCOM M32 CNC lathe was built in 2003 in Japan by CITIZEN WATCH CO., LTD. The machine, which is a combination of high performance and precision, enables to perform even the most complex machining of workpieces in 8 axes. All machining processes, i.e. precise drilling, threading and turning are performed inside a fully illuminated work area by means of cutting tools taken from 3 tool stations. The high thermal stability bed inside effectively reduces the influence of heat, increasing the service life of all components and tools. The CITIZEN CINCOM M-32 CNC lathe is offered with an extensive range of equipment, which includes, among others, two spindles (main spindle and sub-spindle) and an FMB bar feeder. All this is complemented by an intelligent CNC control, which allows, for example, self-diagnosis of the machine or program backup. The CITIZEN M32 swiss-type lathe weighs 3200 kg. Technical specifications of the CITIZEN CINCOM M32 CNC turning center General data number of axes: 8 (X1, Y1, Z1, X2, Y2, Z2, X3, Z3) feed in the X1/X2/X3 axis: 108/120/238 mm feed in the Y1/Y2 axis: 275/44 mm feed in the Z1/Z2/Z3 axis: 325/202/410 mm rapid traverse in all axes: 20 m/min bar length: 2500 mm centre height: 1132 mm maximum number of tools: 22 α, of which: – tools at station 1: 5 – driven tools at station 1: 4 – tools at station 2: 10 α – tools in sub-spindle chuck: 3 maximum tool dimensions: – station 1: 16 x 16 x 130 mm – station 2: 16 x 16 x 90 mm – station 2 (sleeve): ⌀ 25.4 mm – sub-spindle chuck (sleeve): ⌀ 25.4 mm maximum tool diameter mounted in rotary chuck of station 1 (drill and shank cutter): 10 mm maximum tool diameter mounted in rotary chuck of station 2: – drill and shank cutter: 10 mm – slitting cutter: 60 x 15.875 mm; 63 x 16 mm – side milling cutter: 60 x 25.4 mm; 63 x 22 mm – peripheral cutter: 32 x 10 mm – polygonal cutter: 80 x 15.875 mm drive motor power of guide sleeve (10 min/continuous operation): 1.5/0.75 kW power of tool station 1 servo motor: 1 kW spindle power of tool station 2 (10 min/continuous operation): 1.5/0.75 kW back tool station servo motor power: 0.75 kW coolant tank capacity: 170 l weight of the CITIZEN CINCOM M32 machine: 3200 kg Main spindle maximum turning diameter: 32 mm maximum turning length: 320 mm drilling capacity (face machining): 12 mm threading capacity (face machining): M10 rotation speed: 200-8000 rpm rotary tools speed: 200-5000 rpm speed variation: stepless, S 4-digit numerical value spindle bore diameter: 36 mm spindle indexing: 1° C axis indexation: 0,001° drive power (15 min/continuous operation): 7.5/3.7 kW Sub-spindle drilling capacity (back machining): 10 mm threading capacity (back machining): M8 rotation speed: 200-7000 rpm rotary tools speed: 200-5000 rpm speed variation: stepless, S 4-digit numerical value maximum workpiece protrusion length from the sub-spindle: 65 mm maximum workpiece length when picking up the front side from the sub-spindle: 145 mm maximum chuck diameter: 32 mm spindle indexing: 1° C axis indexation: 0,001° drive power (15 min/continuous operation): 2.2/1.5 kW Equipment of the CITIZEN CNC lathe CNC controller: CINCOM SYSTEM M6D bar feeder: FMB TURBO 5-42/3200/C (2004) sub-spindle 3 tool stations with a maximum capacity of 22 tools
