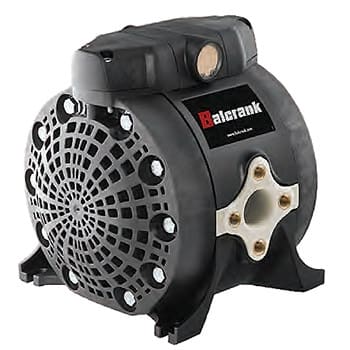

Diaphragm pump, 1″ Port, CeneterFlo 30, CF30, Polyproplene (Balcrank: model 1120-026A)

Description New patented technology CenterFlo pumps feature reversed air/fluid design compared to conventional diaphragm pumps. Fluid path flows through the center of the pump with the air motor to the outside allowing improved suction and performance, less air consumption with less pulsation throughout the performance curve. CenterFlo pumps can handle a wide range of fluids used for vehicle service. Pump air valve module and lateral pump covers are manufactured in polypropylene models. They can be used as stand-alone pumps for transfer applications or as systems pumps in distribution systems that include hose reels. Pump Specifications 1120-026A Air inlet 3/8″ NPSM (F) Fluid inlet port 1″ NPT(F) Fluid outlet port 1″ NPT(F) Max. free flow 28 gal/min (106 l/min) Operating air pressure range 22 –102 PSI (1.5–7 bar) Solids in suspension 3/16″ (3 mm) Wetted Materials: Teflon, Viton, Polypropylene, Stainless steel, Hytrel. Recommended Fluids: Anti-freeze (glycol) and windshield wash solution. Recommended Applications: Fluid dispensing, transfer, evacuation, and distribution systems.
